Our Products

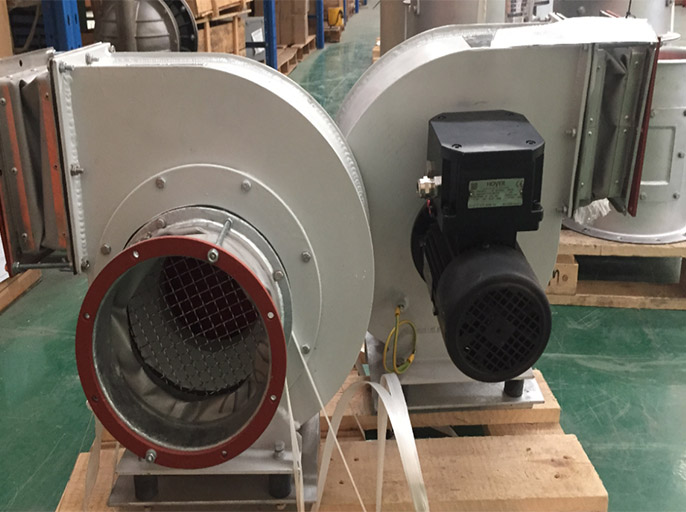

Gas freeing fan
- Acc. to maker's instruction
- Centrifugal fan, high pressure (up to 15000Pa), explosion-proof type
- Supply with flexible connection and vibration block
- Supply with counter flanges on inlet and outlet
- Supply with type approval and product certificates of various class societies
- To dry the Cargo-hold for chemical tankers, oil tankers, multi-purpose ships etc.

High temperature fan
The particular design for the fan:
- According to the real service environment，use the software to simulate the temperature ,to test the real products to ensure reliable
- Specific hose connection, bearing, lubrication, motor and so on to ensure the whole fan can work in high temperature of 600°C
- Special imported stainless steel, anti-corrosion for a very long time
- Marine use fan motor with high load capacity

Ventilation Fan for double wall pipe
Air flow:360~3600m3/h
pressure:4000~6200Pa
Operating Voltage:380/440V，3P，50/60Hz
Motor Power:1.5~9kw
weight:45~133kg
noise level:86~97dB

Duct fan
flow:200~1800m3/h
pressure:100~1000Pa
diameter:DN100~200
Motor Power:0.09~0.64KW
Electric system:380/440V，3P，50/60Hz
weight:4.4~14kg
noise:65~81dB

Explosion-proof axial fan
Air flow:200~250000m3/h
pressure:50~4000Pa
Fan diameter:DN200~1600
Blade material: seawater resistant Al-mg alloy
weight:20~1460kg
Operating Voltage:380/440V，3P，50/60Hz

Fan heater
heating power:2~14KW
Air flow:400~1000m3/h
Operating Voltage:380/440V，3P，50/60Hz
Protection class:IP44
weight:4.5~12.2kg
noise level:50~52dB
